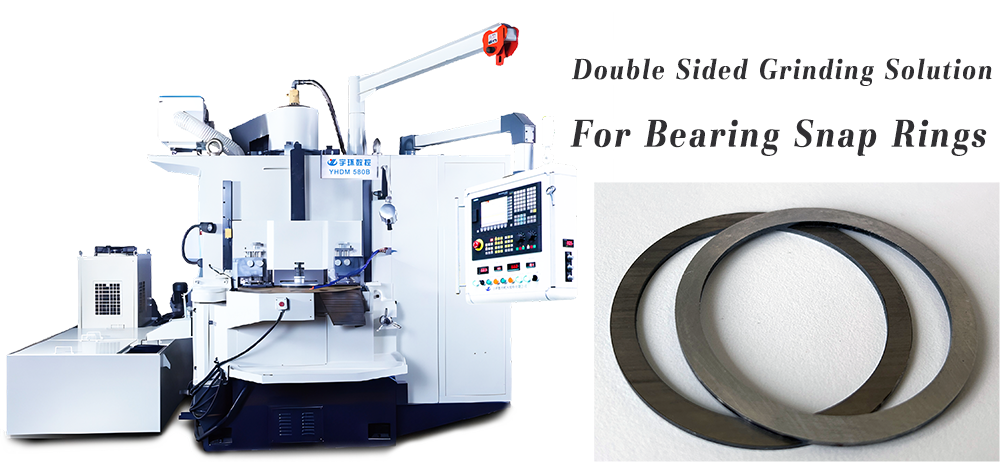

Double Disc Surface Grinding Machine For Bearing Snap Rings

Surface Grinding Machine Model: YHDM580 Double Sided Surface Grinder

Surface Grinding Workpiece:locating snap ring of Bearing (65Mn Material)

Requirement: Flatness/parallelism:0.005mm,Thickness Tolerance±0.007，Roughness Ra0.8

A snap ring or retainer ring is a fastener that holds a bearing in an application in place. A portion of the retaining ring protrudes from the groove to create a shoulder to prevent components from migrating from their position during operation.

YHDM580 Series Vertical Precision Double Surface Grinder，which is designed for grinding the two parallel side surfaces of the various high precise and thin work pieces with round and abnormal shape, no matter made of metal or nonmetal material, can be processed. Such as bearing, valve plate, seal, oil pump vane, piston ring, etc.
